After successful trials by the Royal Navy with submarine borne aircraft, using the Parnall Peto and the M-Class submarines, the V-MF (Voenno-morskoj flot - Naval Fleet") wanted to deploy aircraft from cruiser submarines for open sea reconnaissance. In 1931 Chyetverikov had given a proposal for a submarine launched folding flying boat to the head of TSkB (Tsentrahl'noye Konstrooktorskoye byuro - central construction bureau) but nothing was heard for two years until the NII (Naoochno-Issledovatel'skiy Institoot scientific test institute) placed an order for two prototypes of the SPL. To prove the design, aerodynamically and hydrodynamically, Chyetverikov designed and built a non-folding version of the SPL with manually retracting landing gear designated OSGA-101. Completed in 1934 the OSGA-101was flown for the first time by A.V. Krzhizhevskii and completed flight trials satisfactorily. The OSGA-101 was of mixed construction with wooden wings and hull but Welded steel tube booms carrying the fabric covered Duralumin tail unit. Accommodation was for three with two pilots side by side and a third seat to the rear of the pilots. The SPL was very similar but included shorter span wings which folded to lie alongside the fuselage, only two seats in the cockpit, and a pivotting engine nacelle which folded rearwards to lie between the tail-booms. The folded SPL was to be fitted in a water-tight cylinder 2.5m (8 ft 2-1/2in) in diameter and 7.45m (24 ft 5-1/4in) long, with five minutes allowed for withdrawal and preparation for flight. Flight trials of the SPL commenced at Sevastopol early in 1935, pilotted by A.V. Krzhizhevskii, and were completed by August 1935, but the SPL was rejected due to poor seaworthiness. After the trials the prototype was re-christend Gidro-1, given to Osoaviakhim, and used to set various class records.

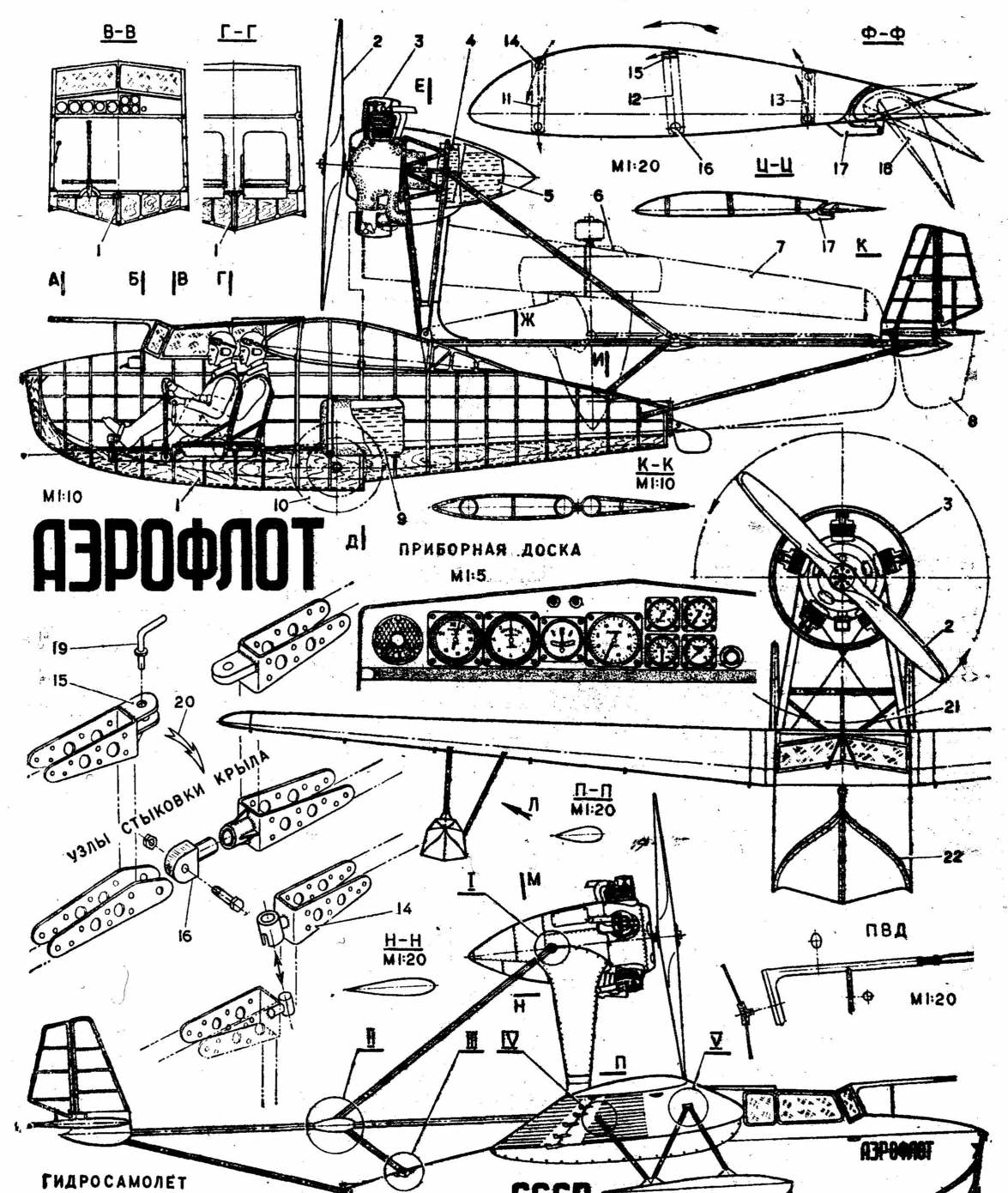

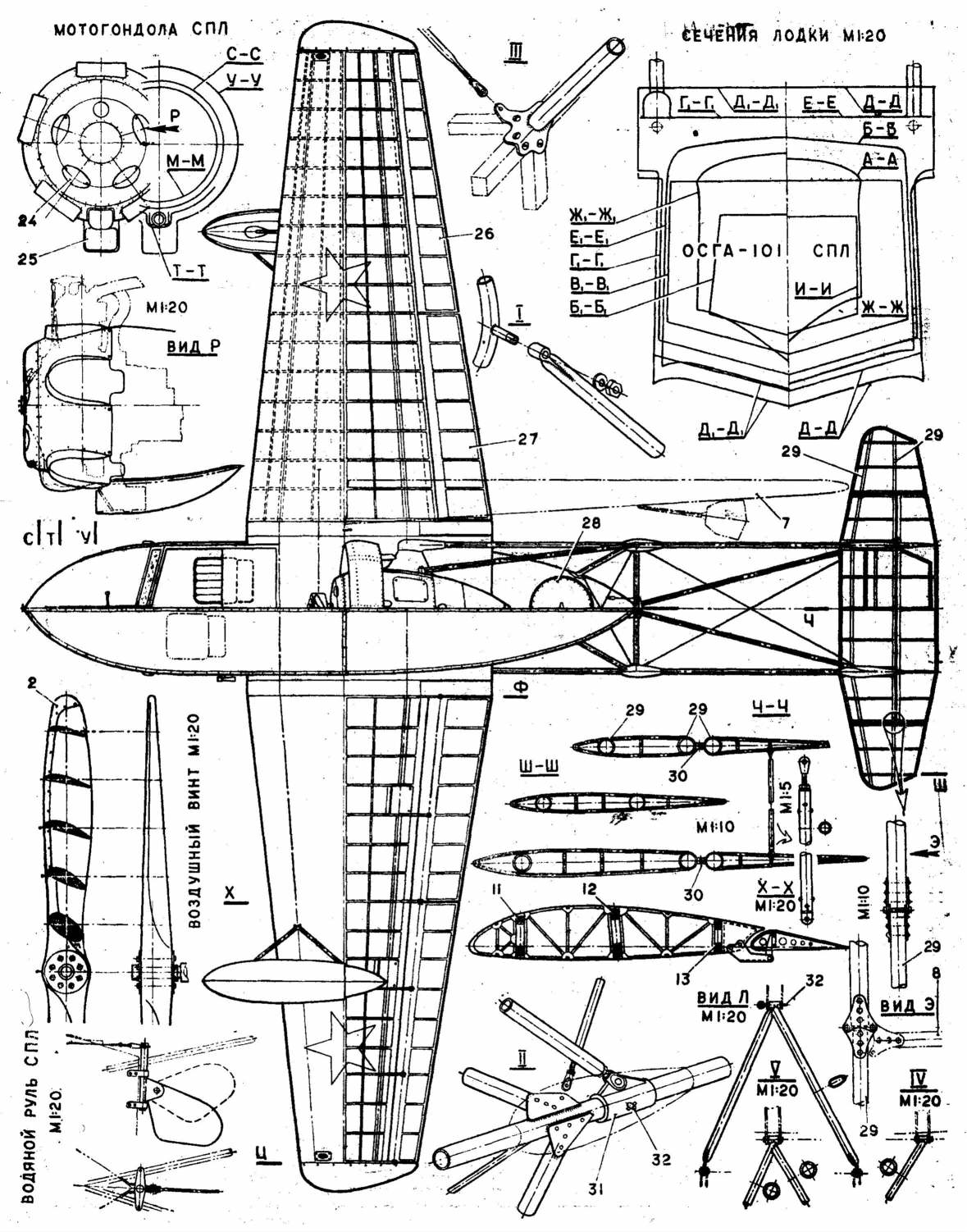

Plans sent in by Evgeny Polovinnik - Thanks, Evgeny.
