There are to my knowledge just three sets of accurate plans readily available to any scale modeler and two of them are shown here; the third is the set contained within the fabulously detailed Windsock Datafile No. 62 written by J.M. Bruce and published by Albatross Publications entitled Felixstowe F.2A. Unfortunately, the publishers hold a bar on any unauthorised use and therefore they cannot be included here, but do go and buy the book as you will not be disappointed, they are superb.

I have scanned the plans here at as large a size I can to show as much of the details contained within them for the modelers benefit.

If anyone knows of any other accurate plans for the Felixstowe F.2A or any other material containing drawings - especially the interior - still in existence and legal to up-load here, please contact SEAWINGS..!

My grateful thanks goes to Bruce John Vander Mark for sending me the manual copy.

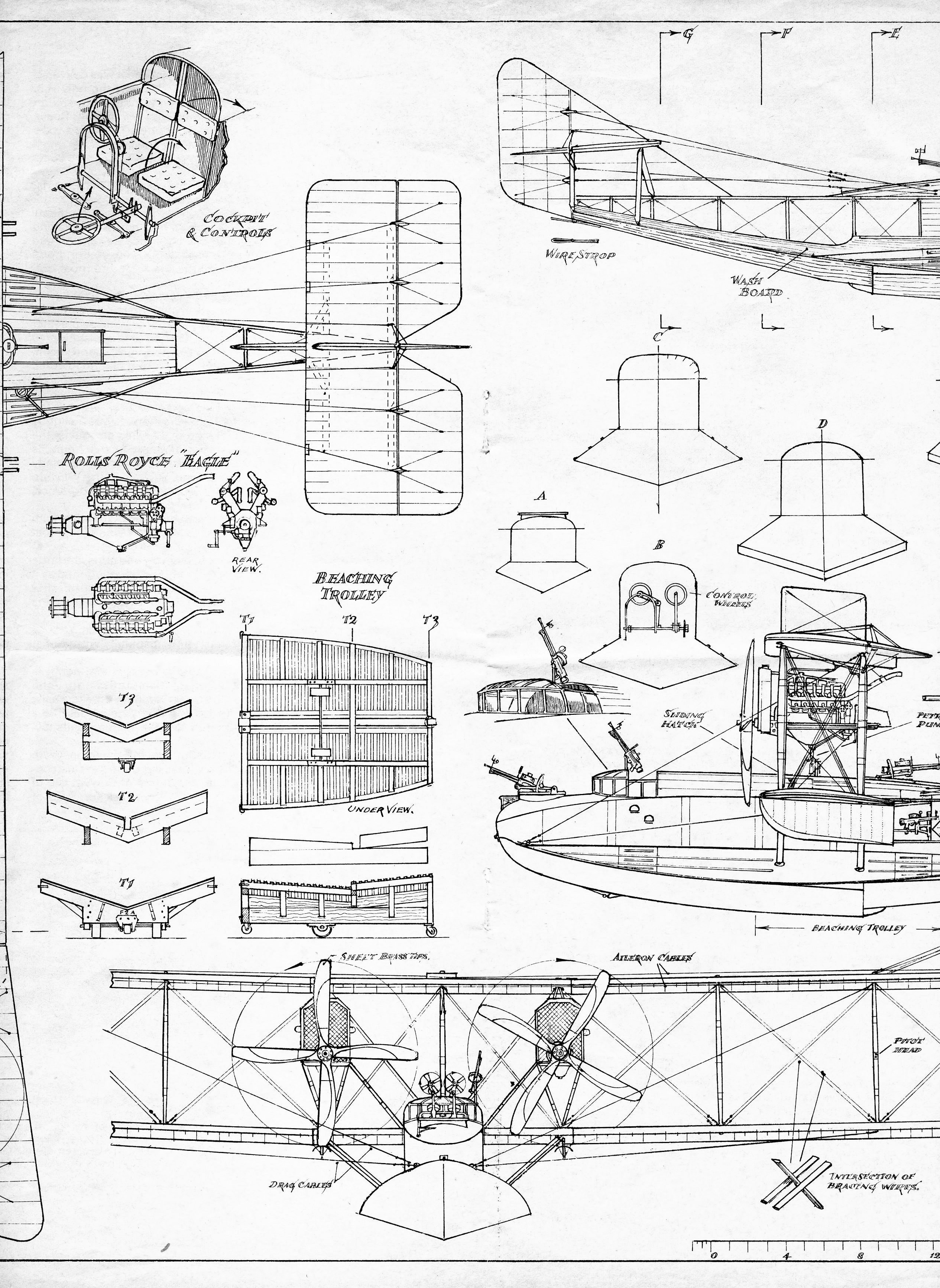

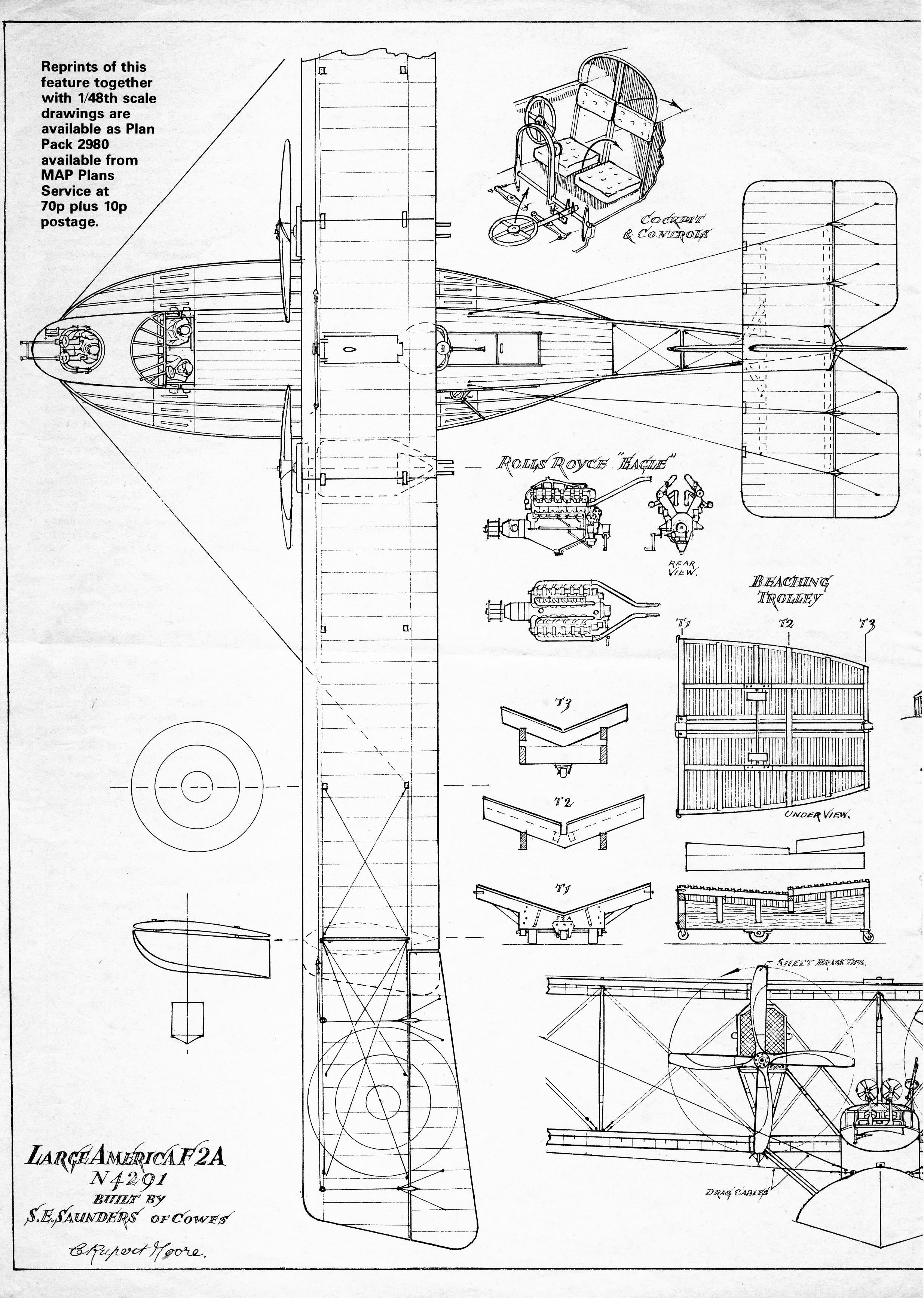

Scale Models - Dec 1977

Drawn by C. Rupert Moore, A.R.C.A.

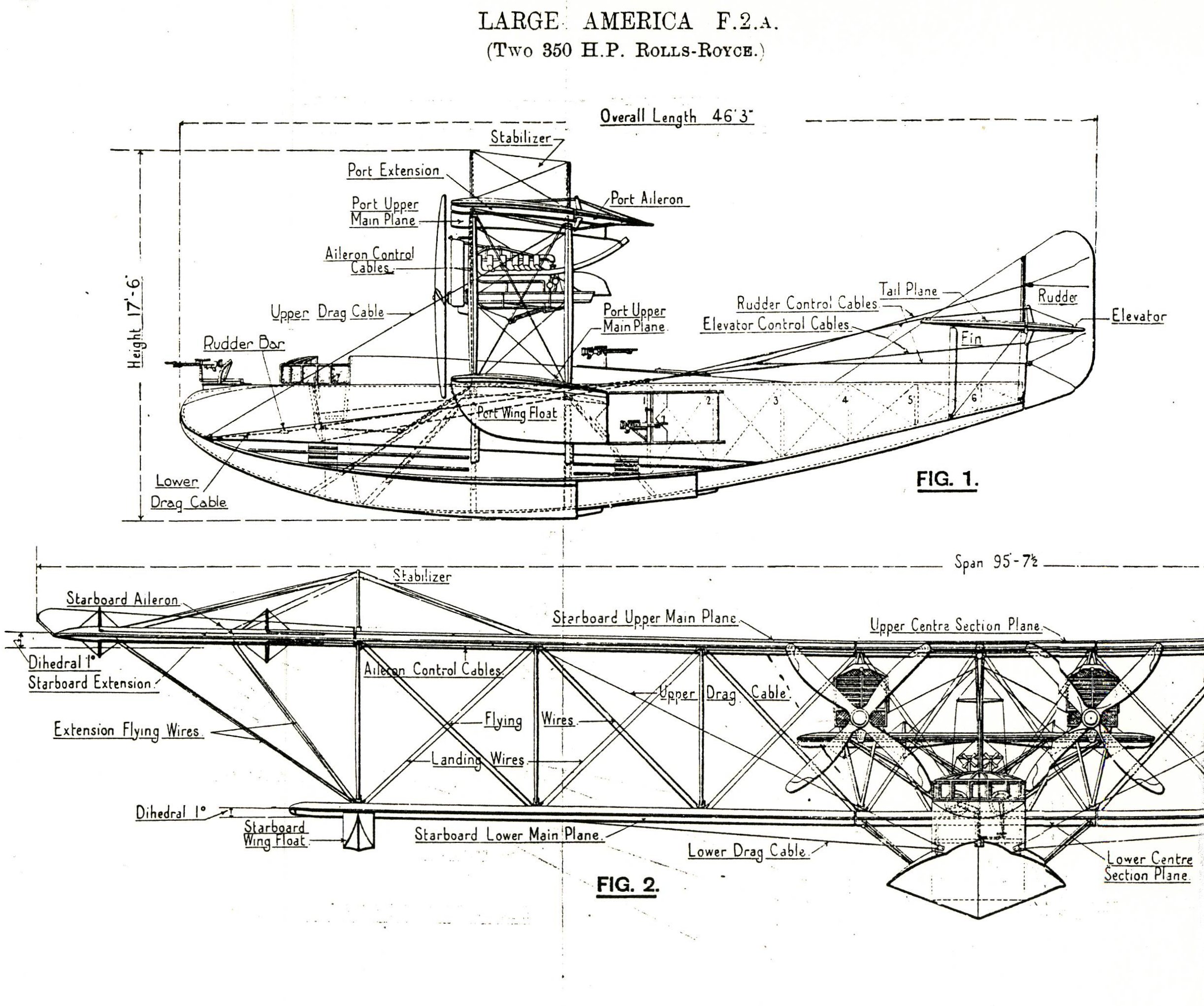

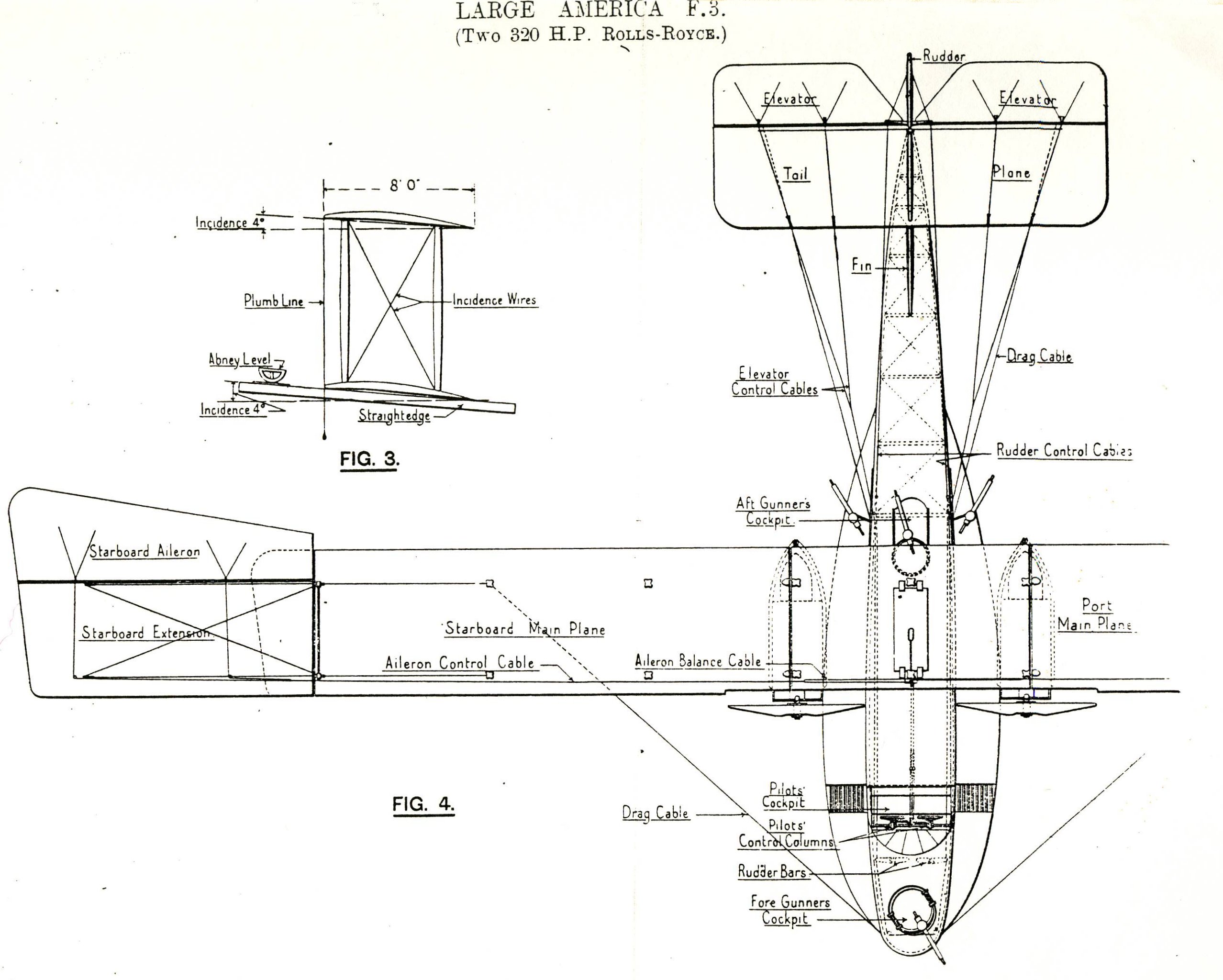

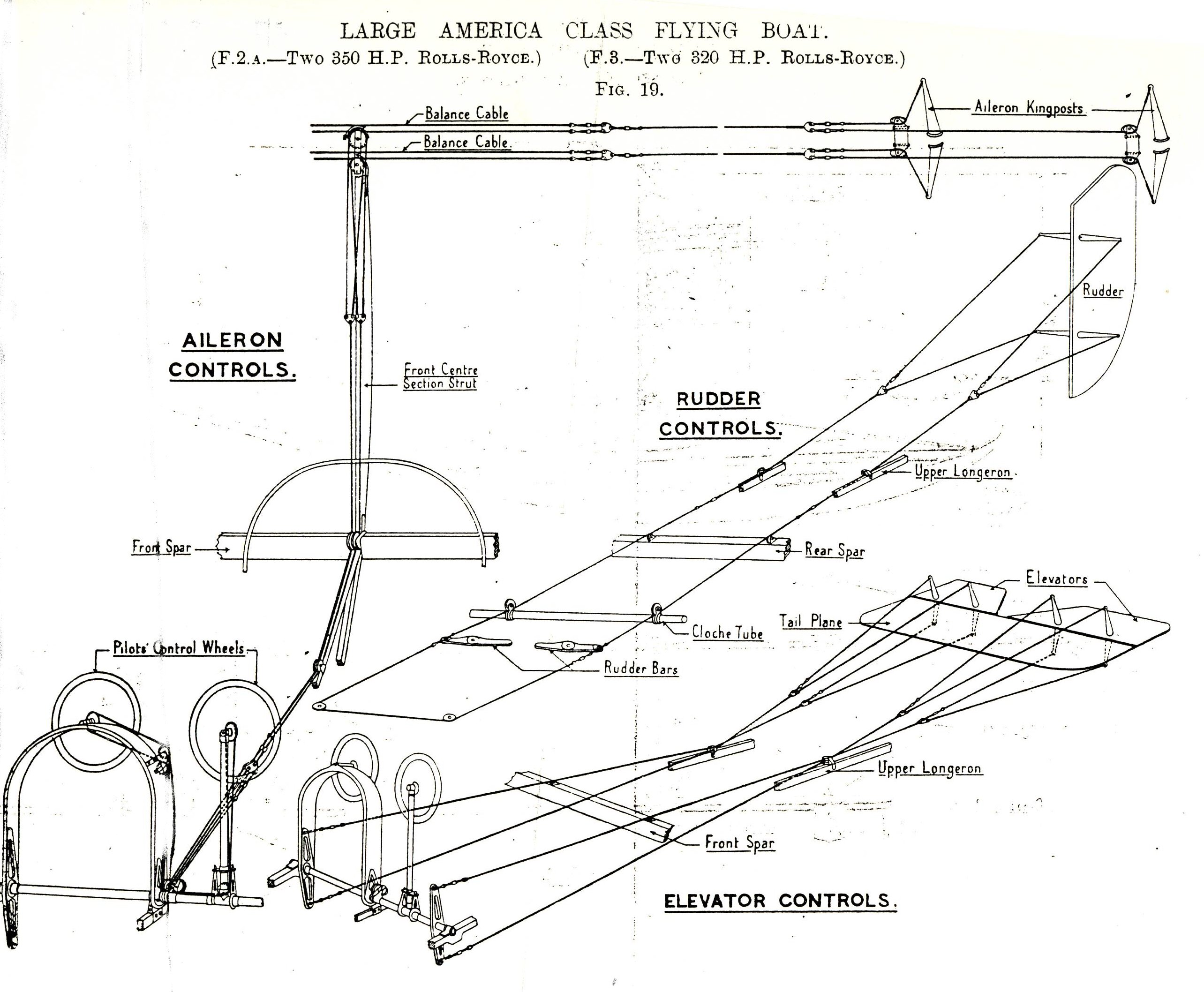

Felixstowe F.2A Erection Manual - 1918
